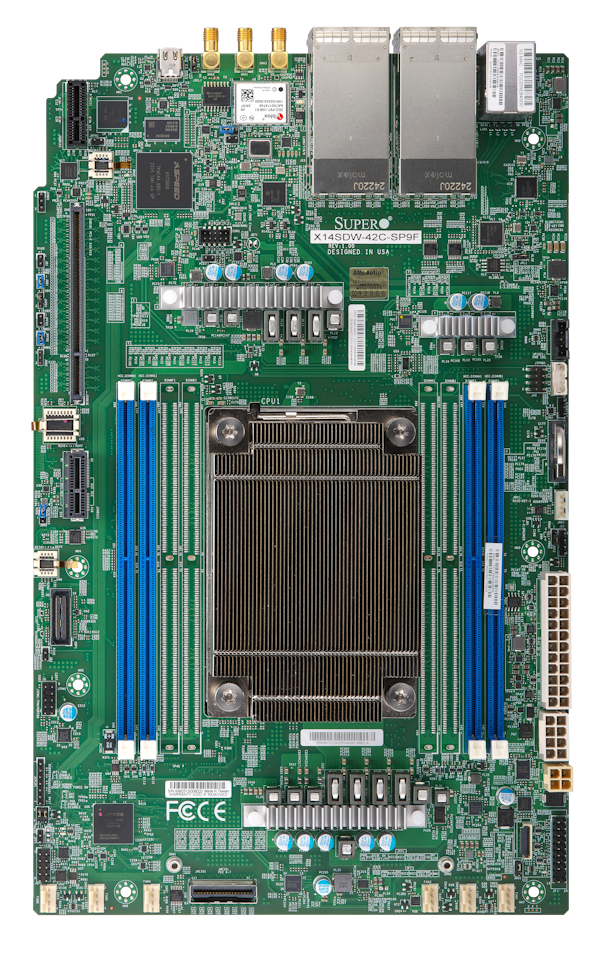

X14SDW-36CE-SP9F

X14SDW-36CE-SP9F
Embedded
Xeon 6 SoC
8x 25GbE LAN
IEEE1588 v2 & SyncE Support

Key Features


  1. System on Chip
  2. Intel® Xeon® 6 SoC 6726P-B, CPU TDP 215W, Intel Quick Assist Technology, Intel vRAN Accelerator, extended working temperature
  3. Up to 512GB ECC RDIMM DDR5-6400MT/s in 4 DIMM slots
  4. 2 PCIe 5.0 x16 via Riser slot
  5. 1 PCIe 4.0 x8 via MCIO connector
  6. 8 25GbE SFP28 with Intel SoC
    1 1GbE RJ-45 with Intel® Ethernet Controller i210IT
  7. 12V DC or ATX Power Input
  8. Onboard TPM2.0
  9. IEEE1588 v2 & Synchronous Ethernet support
    DPLL/OCXO design
    Up to 8 hours hold-over
  10. 2 SMA for 1PPS (1 Input 1 Output)
    1x SMA for GNSS input with onboard GNSS module
...
...
Specifications Resources
Specifications
Product SKUs
MBD-X14SDW-36CE-SP9F
Physical Stats
Form Factor
  • Proprietary
Dimension
  • 8" x 13" (20.32cm x 33.02cm)
Processor
CPU
  • Single Socket supported, CPU TDP supports Up to 215W TDP
Core
  • Up to 36 cores
System Memory
Memory Capacity
  • 4 DIMM slots
  • Up to 512GB ECC Registered RDIMM, DDR5-6400MT/s
Memory Type
  • 4800/5600/6400 MT/s ECC DDR5 RDIMM Up to 512GB of memory with speeds of up to 6400 MT/s(1DPC)
DIMM Sizes
  • 16GB, 24GB, 32GB, 48GB, 64GB, 96GB, 128GB
  • RDIMM: 16GB, 24GB, 32GB, 48GB, 64GB, 96GB, 128GB
Memory Voltage
  • 1.1V
Error Detection
  • Corrects single-bit errors
  • Detects double-bit errors (using ECC memory)
On-Board Devices
Chipset
  • System on Chip
IPMI
  • ASPEED AST2600 BMC
Graphics
  • 1 Aspeed AST2600 BMC port(s)
Network Controllers
  • Single LAN with 1GbE with Intel® I210
  • Octal LAN with 25G SFP28 LAN via SoC
Input / Output
USB
  • 2 USB port(s) (2 rear type A)
Video Output
  • 1 Mini DP port(s)
Serial Port
  • 1 COM Port(s) (1 header)
TPM
  • 1 TPM Header & Chip both
Others
  • 3 SMA 1PPS & GNSS
  • 1 Dry contact
Expansion Slots
PCIe
  • 1 PCIe 4.0 x8 MCIO connector,
  • 2 PCIe 5.0 x16 for Right riser card support
System BIOS
BIOS Type
  • AMI 64MB AMI UEFI
BIOS Features
  • ACPI 6.5
  • UEFI 2.9
  • SMBIOS 3.7
  • Plug and Play (PnP)
  • PCI FW 3.3
Management
Software
PC Health Monitoring
Voltage
  • VBAT, System level control, Supports system management utility, Monitors CPU voltages, +5V standby, +5V, +3.3V, +12V
LED
  • UID/Remote UID
  • CPU / System Overheat LED
Temperature
  • Monitoring for CPU and chassis environment
  • CPU thermal trip support
  • Thermal Monitor 2 (TM2) support
  • PECI
FAN
  • 6x 4-pin fan headers (up to 6 fans)
  • Fan speed control
Other Features
  • WOL
  • UID
  • Control of power-on for recovery from AC power loss
  • ACPI power management
Operating Environment
Operating Temperature Range
  • 0°C - 60°C (32°F - 140°F)
Non-Operating Temperature Range
  • -10°C - 70°C (14°F - 158°F)
Operating Relative Humidity Range
  • 8% - 95% (non-condensing)
Non Operating Relative Humidity Range
  • 8% - 95% (non-condensing)
Resources
Component Options
Tested AOC List
Tested HDD / SSD List
Tested Memory List
Software
Download Driver CD
Download the Latest Drivers and Utilities
OS Compatibility
Documentation
Motherboard Manual
Quick Reference Guide
Parts List

X14SDW-36CE-SP9F (For SuperServer Only) New
