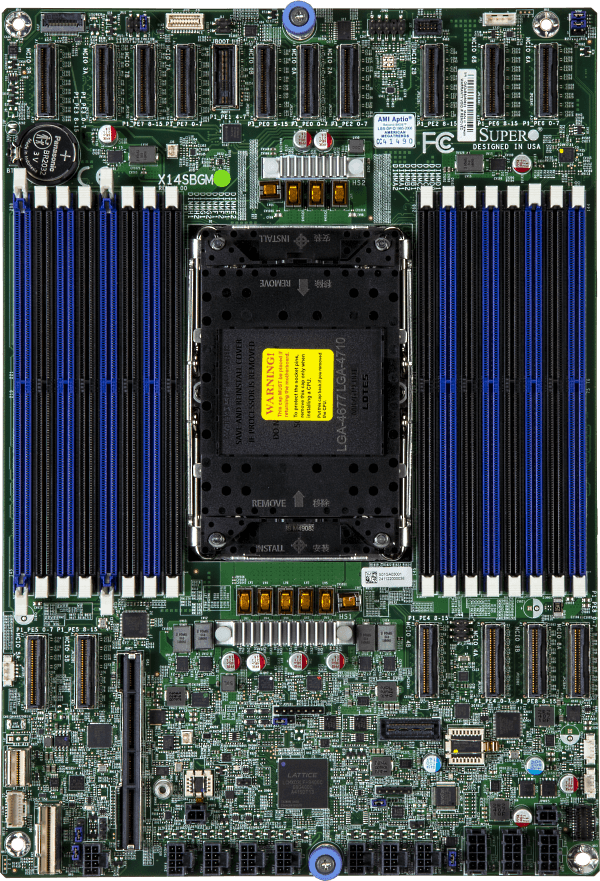

X14SBGM

X14SBGM
Nvidia uMGX GPU Server

Key Features


  1. Intel® Xeon® 6700 series processors with P-cores, Single Socket LGA-4710 (Socket E2) supported, CPU TDP supports Up to 350W TDP
  2. Up to 2TB ECC RDIMM DDR5-6400MT/s and up to 512GB MRDIMM DDR5-8000MT/s in 8 DIMM slots
  3. 16 PCIe 5.0 x16 MCIO
    M.2 Interface: 2 PCIe 5.0 x2
    M.2 Form Factor: 2280, 22110
    M.2 Key: M-Key
...
...
Specifications Resources
Specifications
Product SKUs
MBD-X14SBGM
Physical Stats
Form Factor
  • Proprietary
Dimension
  • 12.03" x 8.265"
Processor
CPU
Core
  • Up to 64 cores
System Memory
Memory Capacity
  • 8 DIMM slots
  • Up to 8TB 3DS ECC RDIMM, DDR5-6400MT/s
Memory Type
  • 6400 MT/s ECC DDR5 RDIMM (3DS) Up to 128GB of memory with speeds of up to 6400 MT/s(1DPC) or 5200 MT/s (2DPC)
DIMM Sizes
  • 32GB, 64GB, 96GB, 128GB
  • RDIMM: 16GB, 32GB, 64GB, 128GB, 256GB
Memory Voltage
  • 1.1V
Error Detection
  • Corrects single-bit errors
  • Detects double-bit errors (using ECC memory)
On-Board Devices
Chipset
  • System on Chip
Network Controllers
  • N/A
Input / Output
TPM
  • 1 TPM TPM 2.0 onboard
Expansion Slots
PCIe
  • 16 PCIe 5.0 x8 MCIO connector
M.2
  • M.2 Interface: 2 PCIe 5.0 x2
  • Form Factor: 2280/22110
  • Key: M-Key
  • *M.2 support requires an optional M.2 adapter card
System BIOS
BIOS Type
Management
Software
PC Health Monitoring
Voltage
  • VBAT, System level control, Supports system management utility, Monitors CPU voltages, +5V standby, +5V, +3.3V, +12V
LED
  • UID/Remote UID
  • CPU / System Overheat LED
Temperature
  • Monitoring for CPU and chassis environment
  • CPU thermal trip support
  • Thermal Monitor 2 (TM2) support
  • PECI
FAN
  • 9x 8-pin fan headers (up to 9 fans)
  • Fan speed control
Other Features
  • UID
  • M.2 NGFF connector
  • Control of power-on for recovery from AC power loss
  • Chassis intrusion detection
  • ACPI power management
Operating Environment
Operating Temperature Range
  • 0°C - 50°C (32°F - 122°F)
Non-Operating Temperature Range
  • -30°C - 60°C (-22°F - 140°F)
Operating Relative Humidity Range
  • 8% - 80% (non-condensing)
Non Operating Relative Humidity Range
  • 8% - 90% (non-condensing)
