Key Applications

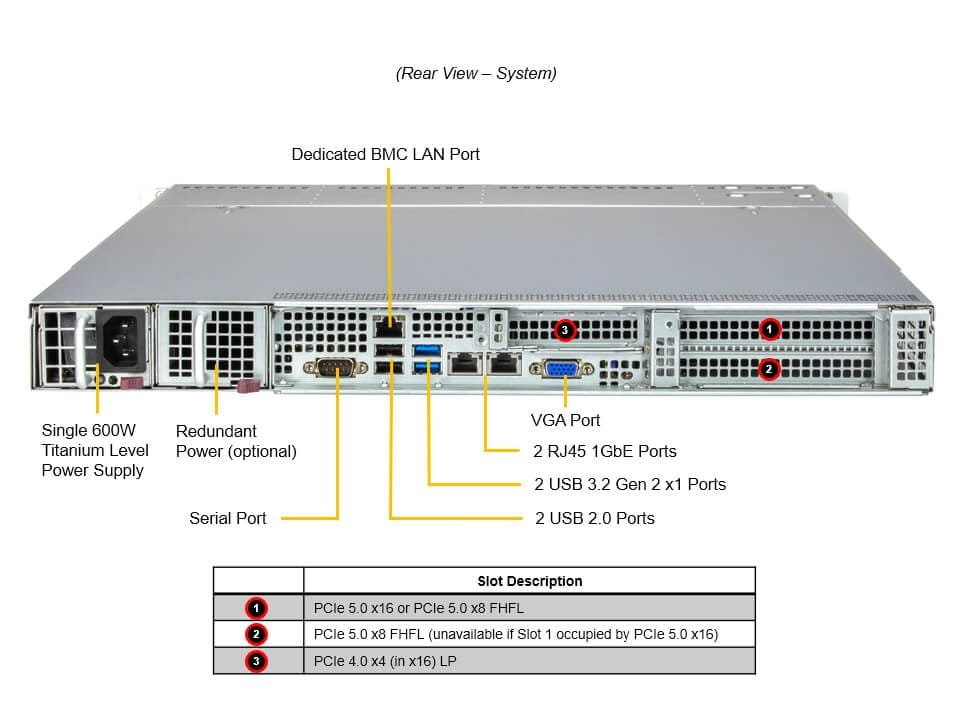

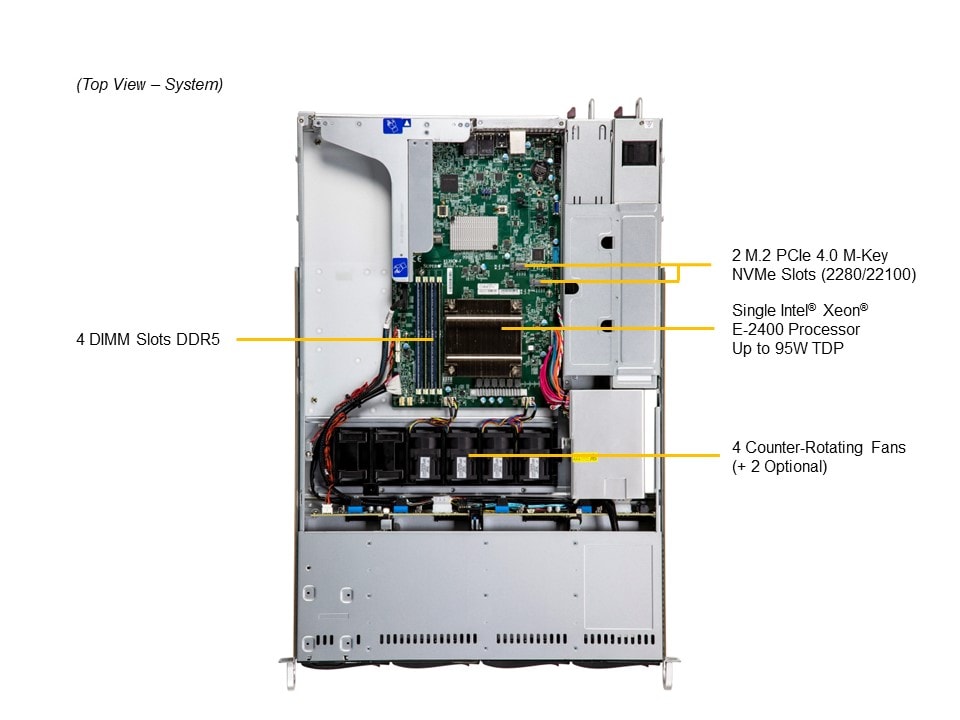

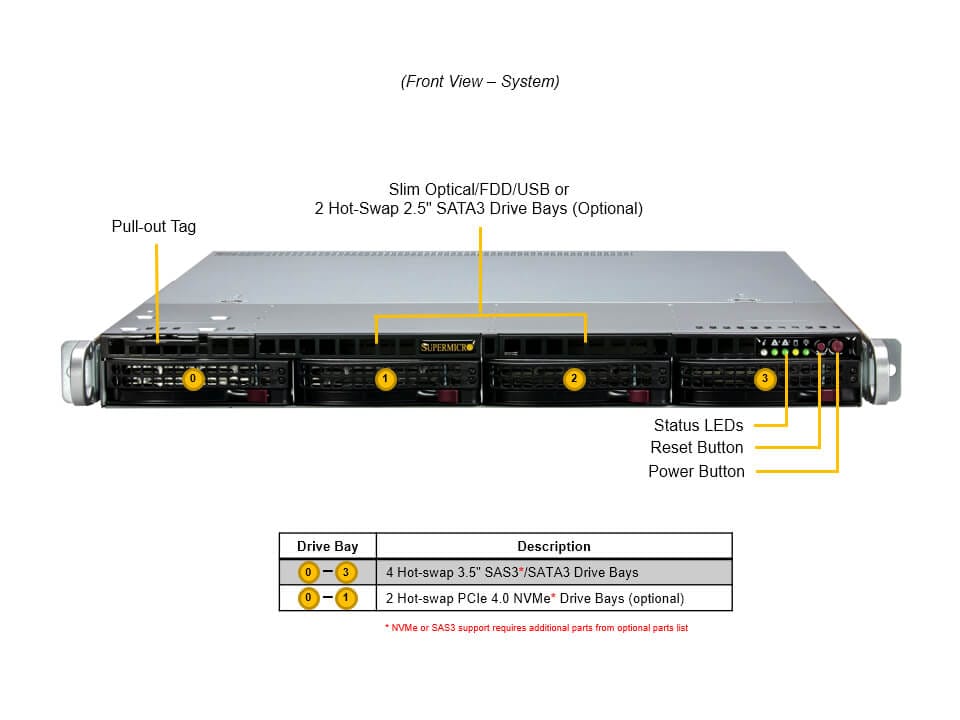

Key Features
|
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||
Supermicro’s JumpStart program offers convenient remote access to fully-configured systems with SSH, VNC, and web IPMI, featuring the latest CPUs and GPUs. Schedule free access to validate, test, and benchmark your own workloads on Supermicro’s top-end server platforms with a few simple steps.
Schedule Access| Standard Parts (Parts Included) | |||
| Part Number | Qty | Description | |
| Motherboard / Chassis |
MBD-X13SCW-F CSE-815BTS-R000WNP |
1 1 |
Super X13SCW-F Motherboard 1U Chassis |
| Backplane | BPN-NVME5-LA15-S4 | 1 | 1U 4-Slot 3.5" Hybrid Backplane for 4x AS3/SATA3/NVME5 S |
| Cable | CBL-CDAT-0674 | 1 | 4 Pin to 4 Pin I2C Cable, 30cm, 26AWG, 4 Wires, Pinout 1-1 |
| CBL-SAST-1275A-100 | 1 | Slimline x8 (STR) to 4x SATA, P1 75cm, P2 75cm, P3 90cm | |
| CBL-0335L | 1 | FRONT CTL CABLE 20 PIN TO 20 PIN W/TUBE,70CM,PBF | |
| CBL-PWCD-0160-IS | 2 | PWCD,US,NEMA5-15P TO IEC60320 C13,6FT,16AWG,RoHS/REACH | |
| Power Supply | MCP-250-00018-0N | 1 | PWS dummy cover for 1U redundant power suppy w/ handle (54.5mm wide) |
| PWS-601A-1R | 1 | 1U redundant 600W Titanium 54.5x40x322mm power supply | |
| MCP-250-81502-0N | 1 | SC815 Redundant Power Distributor Cover | |
| Air Shroud | MCP-310-81507-0B | 1 | Mylar air shroud for 1U SC815B with X13SCW |
| MCP-310-81506-0B | 1 | Air block for 1U WIO SC815B with X13SEW | |
| Manual | MNL-2602-QRG | 1 | 511R-W Quick Reference Guide |
| Riser Card | RSC-W-68G5 | 1 | 1U LHS WIO Riser card with one PCIe 5.0 X16 and one PCIe |
| RSC-WR-6 | 1 | 1U RHS WIO Riser card with one PCIe 4.0 x16 slot,HF,RoHS | |
| Software | SFT-OOB-LIC | 1 | License key for enabling OOB BIOS management |
| Heatsink / Retention | SNK-P0086P | 1 | 1U Passive HS for Intel Raptor Lake (Catlow) SocketV LGA1700 |
| *Power Distributor | PDB-PT116-SL8824 | 1 | Based on PDB-PT116-L8824 to optimize 24Pin etc cable lengths |
| *Fan Holder | CSE-PT0135 | 1 | FAN HOLDER FOR SIX 40X56MM COUNTER ROTATING FANS |
| MCP-340-00035-0B | 2 | Dummy fan 40x56mm for 40x56 counter-rotating fan (cost-effective) | |
| *Peripheral Drive | CSE-PT93L-B | 1 | Black DVD dummy cover for SC813, 813M, 815, PBF-RoHS |
| *Fan | FAN-0163L4 | 4 | 40x40x56 mm, 23.3K-20.3K RPM, Counter-rotating Fan |
| *Front Panel | FPB-FP815U | 1 | 815 UIO front control board (U) |
| *Drive Tray(s) | MCP-220-00075-0B | 4 | Black gen 5.5 hot-swap 3.5" HDD tray |
| *Rear Window | MCP-240-00202-0N | 1 | 1U WIO rear window to support top-load riser bracket for SC815B,SC116B |
| *Rail Set | MCP-290-00016-0N | 1 | 1U open rack bracket set for CSE-PT51L,MCP-290-00054-0N |
| MCP-290-00054-0N | 1set | Rail set, quick/quick, optional for 1U 17.2 | |
Notes:
|
|||
| Optional Parts List | |||
| Part Number | Qty | Description | |
| 3.5" to 2.5" Converter Tray(s) | MCP-220-00043-0N | - | Hot-swap Gen-4 3.5" to 2.5" HDD tray, Black |
| 3.5'' to 2.5" NVMe Drive Tray(s) | MCP-220-00138-0B | 2 | Tool-less Hot-swap Gen-5.5 NVMe 3.5'' to 2.5'' drive tray, Orange tab, Black |
| CacheVault | BTR-CVPM05 + MCP-240-00203-0N (For S3908) | 1 | CacheVault for Broadcom 3908 with SuperCap mounting bracket for PCIe location |
| BTR-CV3916-1U1 (For S3908) | 1 | CacheVault for Broadcom 3908 with SuperCap mounting in 1U 40x56 fan tray | |
| Cooling Fan | FAN-0163L4 | 2 | 40x40x56 mm, 23.3K-20.3K RPM, Counter-rotating Fan |
| DVD-ROM / DVD-RW | DVM-TEAC-DVD-SBT5 | 1 | TEAC slim DVD-ROM SATA drive |
| DVM-TEAC-DVDRW-SBT5 | 1 | PHILPS slim DVD-RW SATA drive | |
| DVD-ROM Accessory | CDM-USATA-G + 1x CBL-0470L + 1x CBL-0099 (max 1pc) | 1 | Slim SATA DVD mounting kit |
| Front Bezel | CSE-PTFB-813LB | 1 | Black Front Bezel |
| CSE-PTFB-813-02B | 1 | Black Front Bezel w/ Round Venting Holes | |
| Hot-swap 2.5" kit (DVD slot) | MCP-220-81506-0N + 1x CBL-SAST-1270S (max 1pc) + 1x CBL-0099 (max 1pc) | 1 | Single 2.5" SAS3 (12Gb/s) hot swap in slim DVD form factor |
| Hot-swap 2.5" kit (FDD slot) | MCP-220-81504-0N + 1x CBL-SAST-1270S (max 1pc) + 1x CBL-0099 (max 1pc) | 1 | Single 2.5" SAS3 (12Gb/s) hot swap in slim FDD form factor |
| Inlet Thermal Sensor | MCP-280-00034-0N | 1 | Inlet Thermal sensor kit with 40cm I2C cable |
| NVMe Cable (Drive Bay 0-1) | CBL-MCIO-1260M5Y • |
1 | MCIO (x8 to 2 x4) STR,60CM,85OHM |
| Power Supply | PWS-601A-1R | 1 | Optional redundant power supply |
| Software | SFT-DCMS-Single | 1 | DataCenter Management Package (per node license) |
| Storage Control Card and Cable(s) | AOC-S3908L-H8iR-16DD | 1 | Standard LP, 8 internal ports (12Gb/s) PCIe 4.0 x8, 16HDD; RAID 0, 1, 5, 6, 10, 50, 60 |
| Storage Control Card and Cable(s) (HBA) | AOC-S3808L-L8IT | 1 | Standard LP, 8 internal ports (12Gb/s) PCIe 4.0 x8, 122HDD; HBA |
| TPM | AOM-TPM-9672V | 1 | TPM 2.0 with 10 pins SPI support, vertical form factor |
| AOM-TPM-9670V | 1 | TPM 2.0, vertical form factor | |
