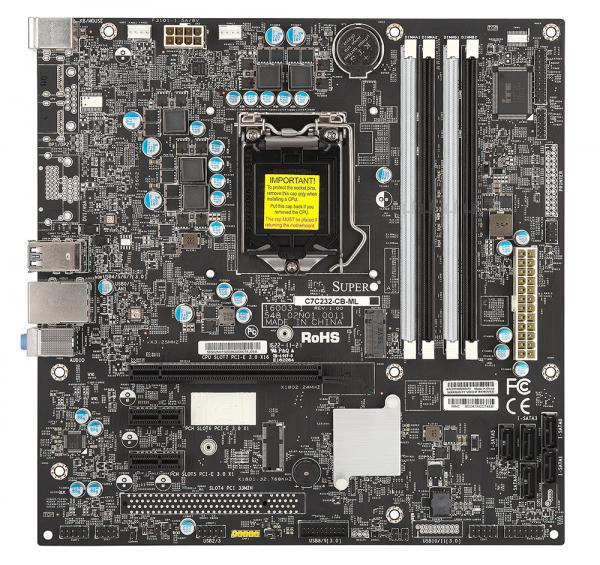

C7C232-CB-ML

C7C232-CB-ML
Desktop

Key Features


  1. Single socket H4 (LGA 1151) supports
    Intel® Xeon® processor E3-1200 v5/v6,
    Intel® 6th/7th Gen. Core™ i7/i5/i3 series,
    Intel® Celeron® and Intel® Pentium®
...
...
Specifications Resources
Specifications
Product SKUs
MBD-C7C232-CB-ML
Physical Stats
Form Factor
  • Micro-ATX
Dimension
  • N/A
Processor
CPU
  • Intel® Xeon® processor E3-1200 v6/v5, Intel® 6th/7th Generation Core™ i3 series, Intel® 6th/7th Generation Core™ i5 series, Intel® 6th/7th Generation Core™ i7 series
  • Single Socket Socket H4 (LGA-1151) supported, CPU TDP supports Up to 80W TDP
System Memory
Memory Capacity
  • 4 DIMM slots
  • Up to 64GB Unbuffered non-ECC UDIMM, DDR4-2400MT/s
Memory Type
  • 2400/2133/1866 MT/s SDRAM 72-bit, 288-pin gold-plated DIMMs
DIMM Sizes
  • N/A
Memory Voltage
  • 1.2V
On-Board Devices
Chipset
  • Intel® C232
SATA
  • Intel® C232 controller for 5 SATA3 (6 Gbps) ports; RAID 0,1,5,10
  • 4 SATA ports via OCuLink (or PCIE3.0 x4 for NVMe)
Audio
  • 5.1 HD Audio
Network Controllers
  • Single LAN with Intel® single Ethernet PHY i219V
Input / Output
USB
  • 6 USB 3.2 Gen1 port(s) (2 via header; 4 rear)
Serial Port
  • 1 COM Port(s) (1 header)
TPM
  • 1 TPM Header
Expansion Slots
PCIe
  • 1 PCIe 3.0 x16,
  • 2 PCIe 3.0 x1
M.2
  • Form Factor: 2242
System BIOS
BIOS Type
  • AMI UEFI
BIOS Features
  • 3TB HDD Support
  • ACPI 1.0 / 2.0 / 3.0 / 4.0
  • ACPI 5.0
  • DMI 2.3
  • Plug and Play (PnP)
  • SMBIOS 3.0
  • UEFI 2.3.1
  • USB Keyboard support
Management
Software
  • SuperDoctor® 5
System Management Software
  • SuperDoctor 5
Power Configurations
  • ACPI Power Management, Keyboard Wakeup from Soft-Off, CPU Fan auto-off in sleep mode
PC Health Monitoring
Voltage
  • Monitors CPU voltages, 1.2V (VDIMM), +5V standby, +5V, +3.3V, +12V
Temperature
  • Monitoring for CPU and chassis environment
  • CPU thermal trip support
FAN
  • 2x 4-pin fan headers (up to 2 fans)
  • Thermal control tachometer fan connectors
  • PWM fan speed control
  • Fan speed control
Other Features
  • WOL, RoHS, CPU thermal trip support for processor protection, Control of power-on for recovery from AC power loss, ATX Power connector, 8-pin 12v DC power connector
Resources
Chassis
SCDS3A-261B
SC731i-300B
SC732D2-500B
...
  1. = Optimized SuperServer Chassis
  2. = Optimized Global Chassis
  3. Blue color = Compatible Chassis
  4. = Compatible Global Chassis
Component Options
Tested AOC List
Tested HDD / SSD List
Tested Memory List
Software
Download Driver CD
Download the Latest Drivers and Utilities
OS Compatibility
Update Your BIOS
Documentation
Motherboard Manual
Quick Reference Guide
Parts List

C7C232-CB-ML
