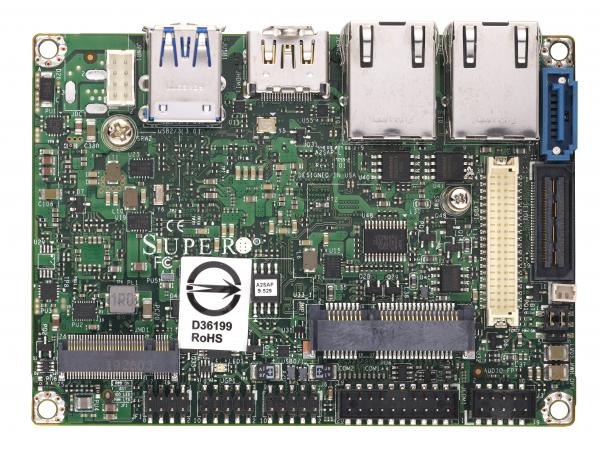

A2SAP-E

A2SAP-E
Low Power
Embedded

Key Features


  1. Up to 8GB 1866MHz DDR3L Non-ECC SO-DIMM in 1 socket
  2. Intel® Atom processor E3940 (9.5W, 4C)
  3. Dual LAN with Intel® Ethernet Controller I210-IT
  4. 1 M.2 B-Key 2242/3042, 1 Half size Mini-PCIe, 1 SATA 3.0
  5. Intel® Goldmont microarchitecture 14nm System-on-Chip
  6. 1 HDMI, 1 48-bit LVDS, Intel® HD Graphic 2 independent displays
  7. Supports 12V DC power input
  8. Wide temperature suppot from -30°C to 75°C
  9. 2 USB 3.0 ports (rear), 2 USB 2.0 ports (via headers), 2 COM ports (via headers)
...
...
Specifications Resources Parts List
Specifications
Product SKUs
MBD-A2SAP-E
Physical Stats
Form Factor
  • Pico-ITX
Dimension
  • 4" x 2.83" (10.16cm x 7.19cm)
Processor
CPU
  • Intel® Atom® Processor E3940
  • Single Socket FCBGA-1296 supported, CPU TDP supports Up to 9.5W TDP
Core
  • Up to 4 cores, 4 threads / 2MB Cache
Note
System Memory
Memory Capacity
  • 1 DIMM slots
  • Up to 8GB Unbuffered non-ECC SODIMM, DDR3-1866MT/s
Memory Type
  • 1866 MT/s non-ECC DDR3 SODIMM Unbuffered DDR3L up to 8GB
DIMM Sizes
  • 2GB, 4GB, 8GB
Memory Voltage
  • 1.35V
On-Board Devices
Chipset
  • System on Chip
SATA
  • SoC controller for 1 SATA3 (6 Gbps) ports
Audio
  • ALC 888S HD Audio
Graphics
  • 1 Intel® HD Graphics port(s)
Network Controllers
  • Dual LAN with Intel® Ethernet Controller I210IT
Input / Output
SATA
  • 1 SATA3 (6Gbps) port(s)
LAN
  • 2 RJ45 Gigabit Ethernet LAN ports
USB
  • 2 USB 2.0 port(s) (2 via header)
  • 2 USB 3.0 port(s) (2 rear)
Video Output
  • 1 HDMI port(s), 1 LVDS port(s)
Serial Port
  • 2 COM Port(s) (2 header)
Others
  • 1 8-bit GPIO header
  • 1 HD Audio header (Mic-in/Headphone-out) (Note:Audio only support 0~60C)
  • 1 SMbus and 5V/A SATA Power bo header
  • 1 24-Pin 2V DC-IN power input bo header (20mm pitch)
  • 1 EI/O ( DP/HDMI
  • 1 PCI-E 1
  • 1 USB0
  • 1 LPC
  • 1 SMBus
  • 1 2Vsb 2A
  • 1 Vsb 28A)(Note:A2SAP-E/-L does NOT support SATA signal)
Expansion Slots
PCIe
  • 1 Half size Mini-PCIe (USB2.0 x 1,PCIe Gen2 x 1)
  • 1 EI/O (1 DP/HDMI, 2 PCIe x1, 2 USB2.0, LPC, SATA3, SMBus, 12Vsb 2A, 5Vsb 2.8A) (Note:A2SAP-E/-L does NOT support SATA signal)
M.2
  • M.2 Interface: USB 2.0; SATA; PCIe 2.0 x1
  • Form Factor: 3042, 2242
  • Key: B-Key
System BIOS
BIOS Type
  • AMI UEFI
BIOS Features
  • ACPI 6.0
  • SMBIOS 3.0
  • UEFI 2.5
  • PCI FW 3.0
Management
Software
  • SuperDoctor® 5, Watchdog
System Management Software
  • SuperDoctor 5
Power Configurations
  • ACPI Power Management, +12V DC Power Input, Control of power-on for recovery from AC power loss, Force Power On by Jumper
PC Health Monitoring
Voltage
  • VBAT, System temperature, System level control, 3.3V standby, +3.3V, +12V, +1.35V, Memory Voltages, VCGI
LED
  • Standby alert LED
Temperature
  • CPU thermal trip support
Other Features
  • WOL, System level control, RoHS, M.2 NGFF connector, CPU thermal trip support for processor protection, Control of power-on for recovery from AC power loss, ACPI power management
Operating Environment
Operating Temperature Range
  • -30°C - 75°C (-22°F - 167°F)
Non-Operating Temperature Range
  • -40°C - 85°C (-40°F - 185°F)
Operating Relative Humidity Range
  • 8% - 90% (non-condensing)
Non Operating Relative Humidity Range
  • 10% - 95% (non-condensing)
